Safety impact test result
- Vendor 广汽本田汽车有限公司
- Brand 冠道 240TURBO CVT豪华版
- The overall score 54.20
- The star
| Range of | SUV | Front airbag | 有(驾驶员、前排乘员) |
| Model type | GHA6480KAC5A | Side airbag | 有 |
| ESC | 有 | Safety air curtain | 有 |
| Purchase price of test vehicle (ten thousand yuan) | 25.38 | Seat belt pretensioner | 有(前排) |
| Length X width X height (mm) | 4816X1942X1669 | Seat belt limiter | 有(前排、后排) |
| Engine displacement (ml) | 1498 | Driver side seat belt alert | 有(视觉、听觉) |
| Preparation quality (kg) | 1756 | Passenger side seat belt reminder | 有(视觉、听觉) |
| Maximum total mass (kg) | 2180 | ISOFIX device | 有 |
| Use status monitoring of passenger side seat | 有 | Voluntary application | 是 |
| Security system | model | Production enterprise | note |
| Front side airbags |
77800-THA(*) 77850-THA(**) |
*中山富拉司特 **高田（荆州） |
*驾驶员侧正面气囊 **乘员侧正面气囊 |
| Side airbag and air curtain |
78005-THA(*) 78850-THA(**) |
高田（荆州） 高田（荆州） |
*撞击侧前排侧气囊 **撞击侧侧气帘 |
| Front seat belt |
TS-AH3-J2162(驾)；TS-AH3-J2161(乘) |
高田（荆州） |
预张紧及限力功能 |
| Second row left seat belt |
TS-AH3-J2017 |
高田（荆州） |
限力功能 |
| Pilot seat |
CT17 FS07S GZTS 111 |
广州提爱思 |
非主动式头枕 |
| ESC controller |
EV5065 |
博世汽车（苏州） |
- |
Full frontal impact test
score:14.59（81.06%）
- Full marks
- 1/2≤score<Full marks
- 0<score<1/2
- 0 point
The back
In the front
| In the front row | The back | ||||||||
| The head | The neck | The chest | The thigh | The calf | The head | The neck | The chest | Subtract points from a single test | |
| Full marks | 5 | 2 | 5 | 2 | 2 | 0.8 | 0.2 | 1 | - |
| Test scores | 5.00 | 2.00 | 2.48 | 2.00 | 1.60 | 0.80 | 0.20 | 0.51 | - |
Frontal 40% collision test
score:14.80（82.22%）
- Full marks
- 1/2≤score<Full marks
- 0<score<1/2
- 0 point
The back
In the front
| In the front row | The back | ||||||
| Head and neck | The chest | The thigh | The calf | Head and neck | The chest | Subtract points from a single test | |
| Full marks | 4 | 4 | 4 | 4 | 1 | 1 | - |
| Test scores | 4.00 | 3.04 | 4.00 | 3.24 | 0.45 | 0.07 | - |
Side impact test
score:18.00（100%）
- Full marks
- 1/2≤score<Full marks
- 0<score<1/2
- 0 point
The back
In the front
| In the front row | The back | ||||||
| The head | The chest | The abdomen | Pelvis | The head | Pelvis | Subtract points from a single test | |
| Full marks | 4 | 4 | 4 | 4 | 1 | 1 | - |
| Test scores | 4.00 | 4.00 | 4.00 | 4.00 | 1.00 | 1.00 | - |

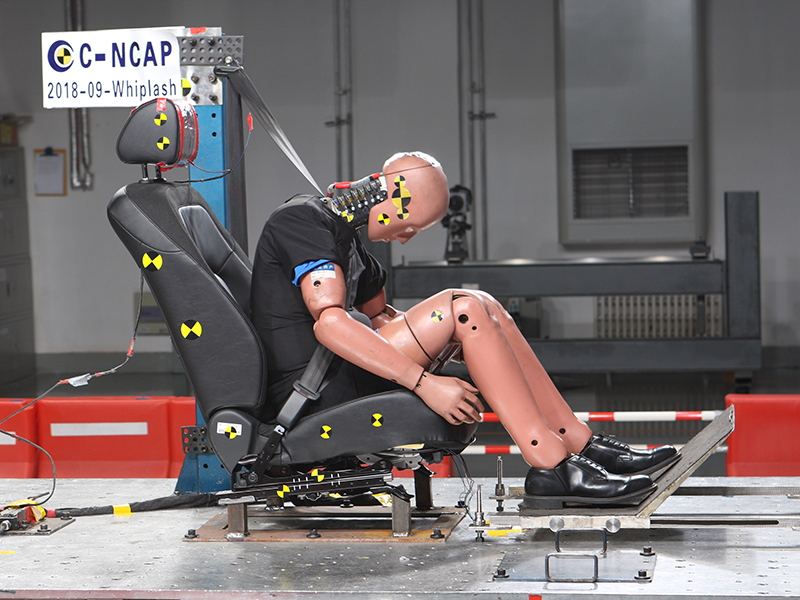

Whip test
score:3.76（94%）
| NIC | Upper neck load | down neck load | points | Total score | |
| Full marks | 2 | 1 | 1 | - | 4 |
| Test scores | 1.76 | 1.00 | 1.00 | 0.00 | 3.76 |
Bonus points：3.00,前排乘员侧安全带提醒装置；侧面安全气囊及气帘；ESC
